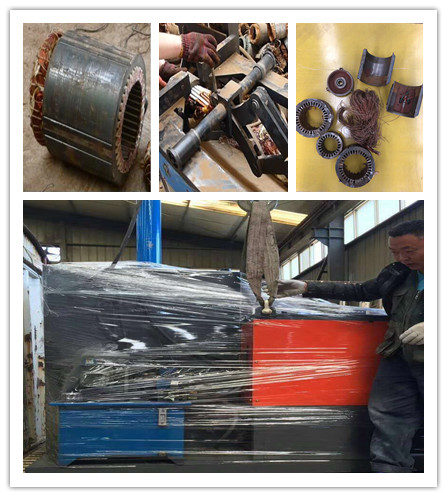

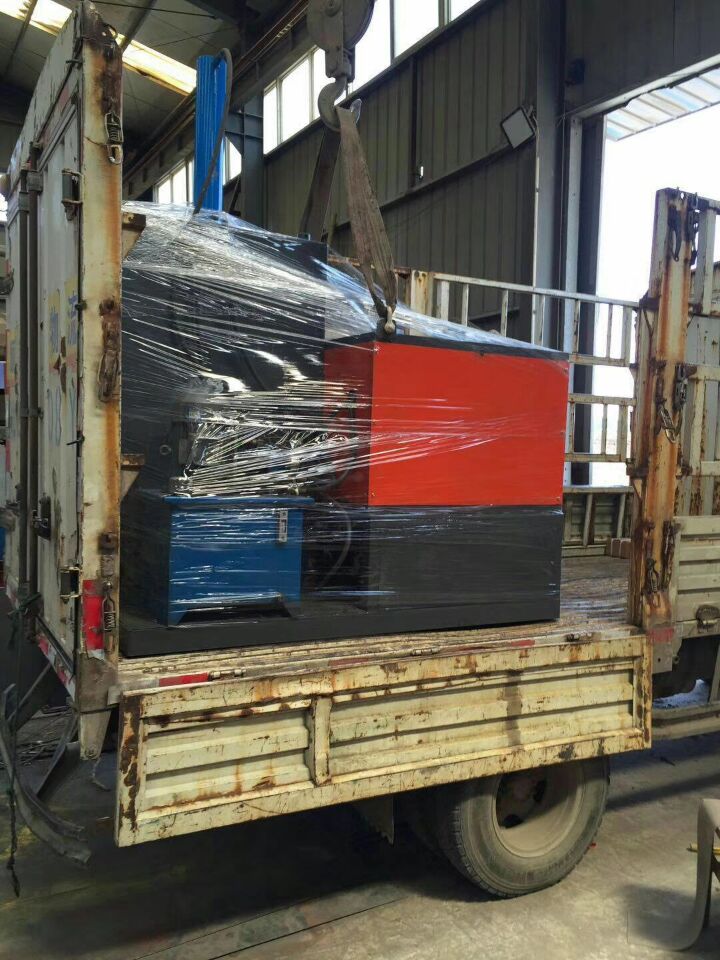

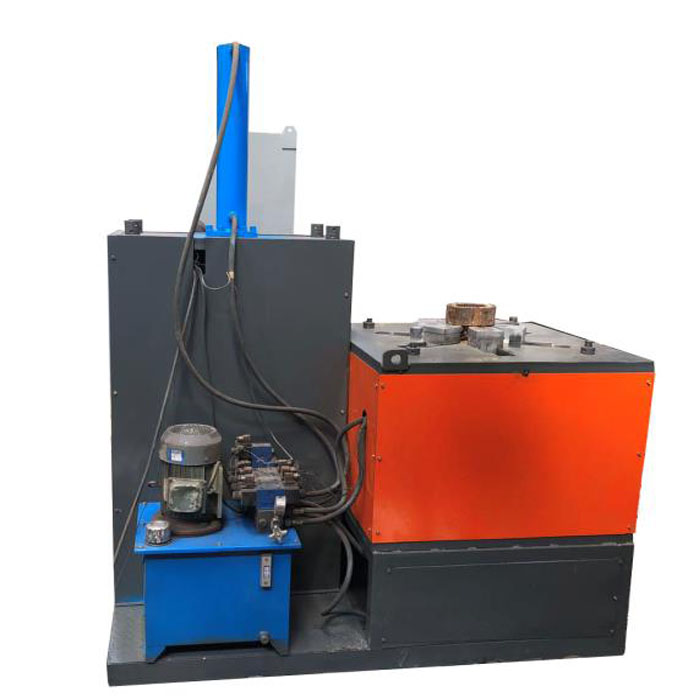

Hydraulic motor stator cutting and copper winding separator machine
Process stator within 8-30cm dia to get copper winding
Introduction:
Hydraulic motor stator cutting and copper winding separator machine can be used to Recycle copper winding of stator within 8-30cm dia.
Cut the stator in half,Then take out all the copper winding,very high efficiency and good apprearance and reasonal structure.
Parameter:
Motor power: 5.5KW System pressure: 16Mpa
Maximum tonnage: 30 tons Oil tank capacity: 95 liters
Thread cutting stroke: 400mm Cutter size: 300*350mm
Thread removal range: 80-300mm
Thread removal tonnage: 8 tons Control mode: electric control
Operation station: dual-station simultaneous operation
Overall dimensions: 1650*800*1700mm Machine weight: 890kg
