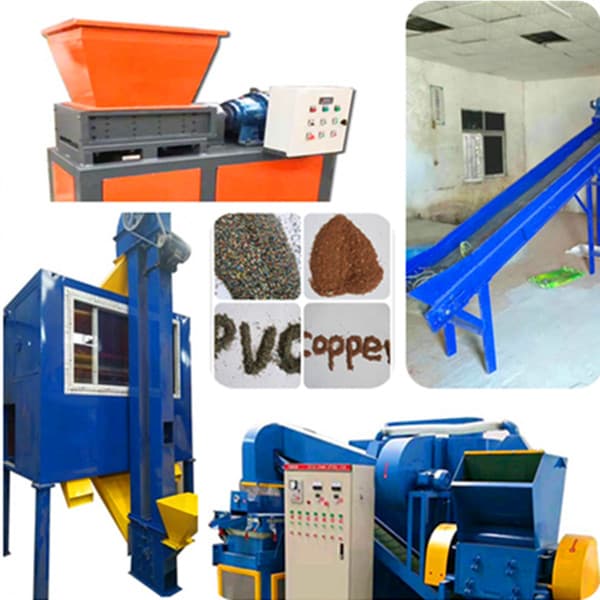

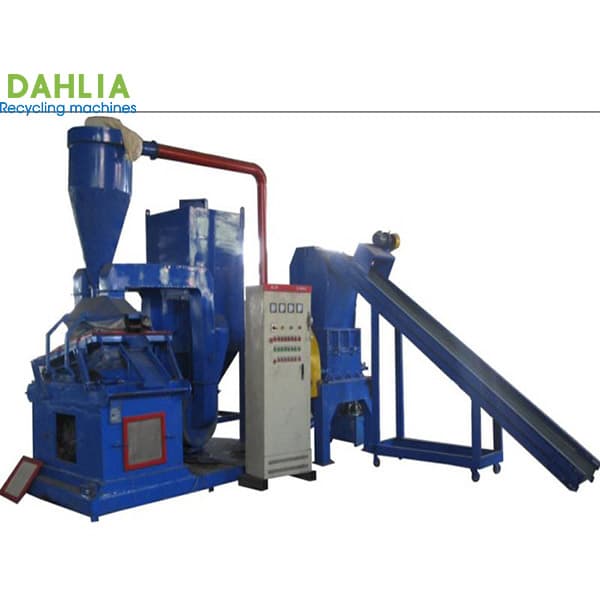

Large Electrical copper wire recycling system
High-quality copper granules and plastic granules for recycling Electrical copper wire
Introduction:
Large Electrical copper wire recycling system can be used to separate High-quality copper granules and plastic granules scrap for recycling Scrap cable
Applicable materials
Waste wire recycling equipment, copper plastic wire separation equipment can recover materials:
Various waste miscellaneous line wires, copper plastic wires, aluminum plastic wires, such as automotive circuit lines, motorcycle circuit lines, battery circuit lines, circuit lines for dismantling of used household appliances, circuit lines for waste mechanical & electrical product disassembling , computer cables, telephone lines , cable TV line, communication line, and very thin wire or filament wires that is hard to separate.
Working principle:
Firstly ,rough crush waste materials and extract the iron-containing material.Then crush and make materials into a mixture of metal and plastic.
Metal plastic mixture has the uniformity in size and difference in weight,So it is easy to separate using a gravity separator.
Because The plastics sorted by the gravity sorter are not completely clean and will contain the copper silk or copper powder (2%--5%).
The electrostatic separator can be used to reovery the remaining small copper wire or copper powder.
In this way,the metals are basically Extracted, and there is no residual metal in the plastic, which greatly improves the utilization value.
Advantages:
A. Environmental protection, no waste water, no dust pollution in the whole process.
B. Highly automated, and only need 1--2 operator.
That is to say, the waste wire is fed one side, and copper and plastic are produced another side .
C. High metal recovery rate, and the recovery rate of copper can be close to 100% By combining with the electrostatic sorting machine, . Basically, there is no plastic in the metal, and there is no metal in the plastic.
D. Blades are all made of hard and wear-resistant tools, sharp and .
E. The device has compact structure, small floor area , easy disassembly and installation, and convenient maintenance.
