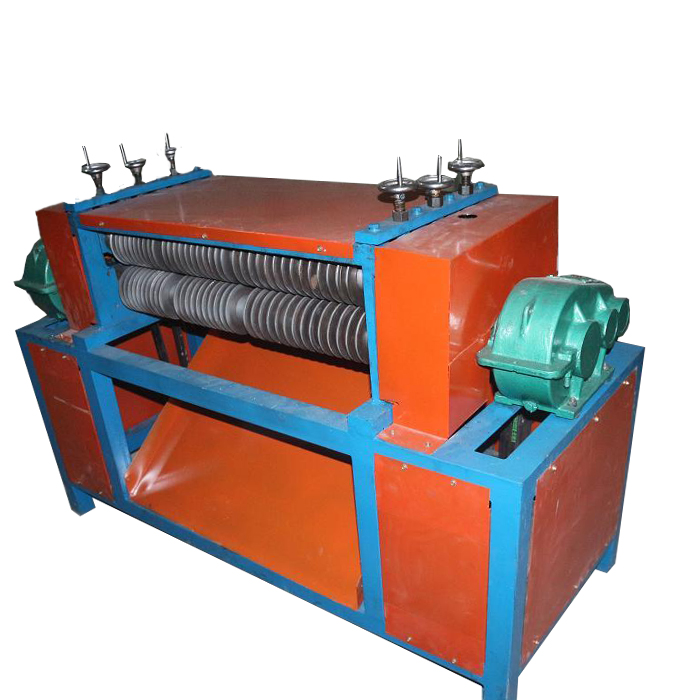

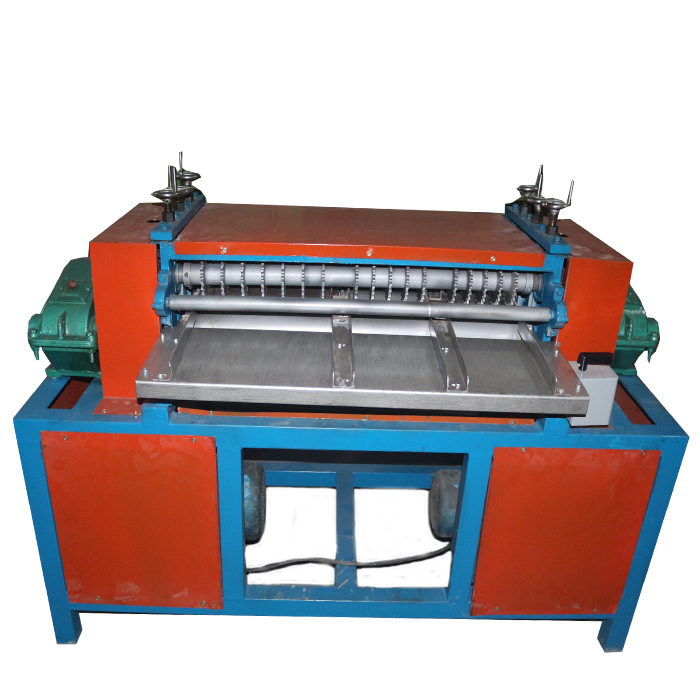

RP-850 Refrigerator Radiator copper aluminum separator machine
Adopts advanced stripping technology, which can quickly separate copper tubes and aluminum fins from waste radiator
Tired of time-consuming manual radiator disassembly that wastes labor and reduces profits? Our Radiator Disassembly Machine eliminates these headaches – it separates copper tubes, aluminum fins, and shells in seconds, turning scrap radiators into high-value recyclables fast.
Refrigerator Radiator copper aluminum separator machine is designed for recycling scrap radiators (sourced from discarded air conditioners, water tanks, automobiles, or refrigerators) to separate valuable copper tubes and aluminum.
Parameter:
Model | External di#56585emension(mm) | Blade quantity (Pcs) #56585e | Diameter of blade (mm) | Number of platens (per platen) | Diameter of platen (mm) | Power (kw) | Weight (kg) |
RP-850 | 1700*1000*1100 | 65 | 105+100 | 70 | 125 | 7 | 750 |
RP-1200 | 2100*1150*1100 | 117 | 105+100 | 121 | 125 | 7 | 1250 |
How to work:
1. Pre-separation Preparation: Remove the iron sheets on the radiator sides first. Then cut the radiator into neat sections, ensuring each section has a width of 30-40 cm.
2. Feeding & Stripping: Put the cut radiator sections into the machine’s feeder to start the stripping process. The machine supports automatic discharge, no manual handling required.
3. Layer Handling: It can directly peel 1-layer and 2-layer radiators. For radiators with more than 2 layers, use a band saw to cut them into 1-layer or 2-layer sections before feeding.
Final Output & Advantages

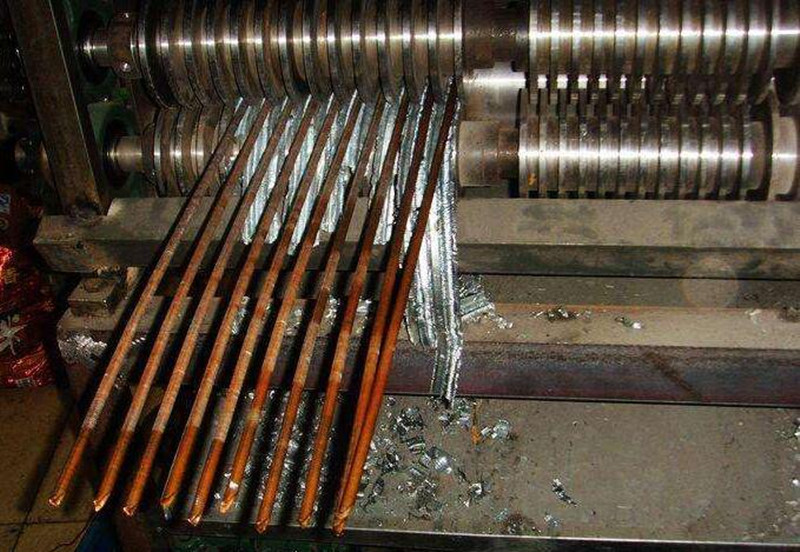

- End Products: Pure copper tubes and aluminum foil (no mixed impurities).
- Core Advantage: Achieves a 100% metal recycling rate, making it a highly profitable metal recycling solution.
