Aluminum plastic recycling machine

4 ton Aluminum Composite Panel stripping machine
  • 4 ton Aluminum Composite Panel stripping machine

4 ton Aluminum Composite Panel stripping machine

Aluminum Composite Panel stripping machine can separate aluminium sheet and plastic sheet from  ACM / ACP (Aluminium Composite Material / Aluminium Composite Panels), it can make 100% stripping and processing capacity arrive 600kg hour

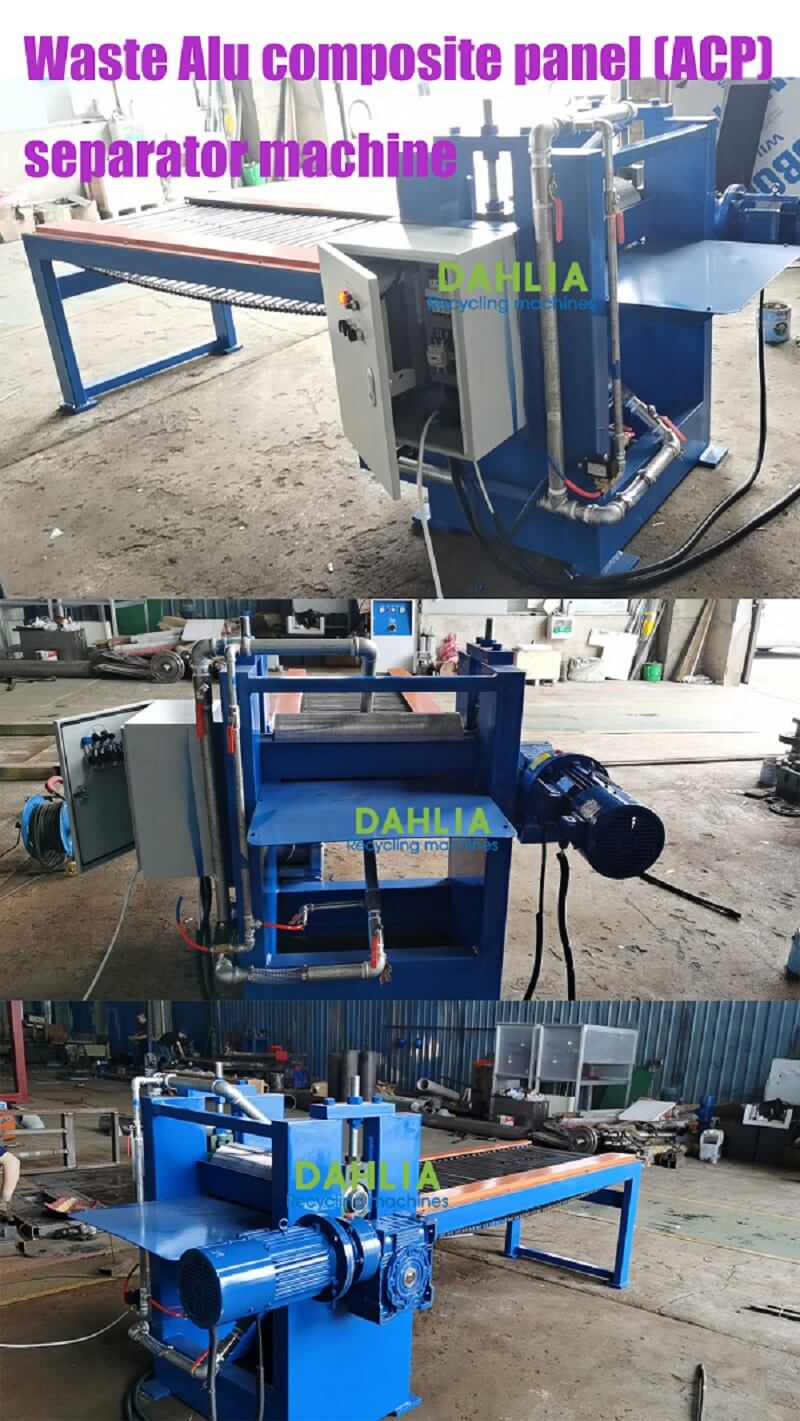

    4 ton daily hour Aluminum Composite Panel stripping machine
    demo of alu composite panel  stripping machine
    Application:strip aluminium sheet and plastic sheet from  ACM / ACP (Aluminium Composite Material / Aluminium Composite Panels), it can make 100% stripping.

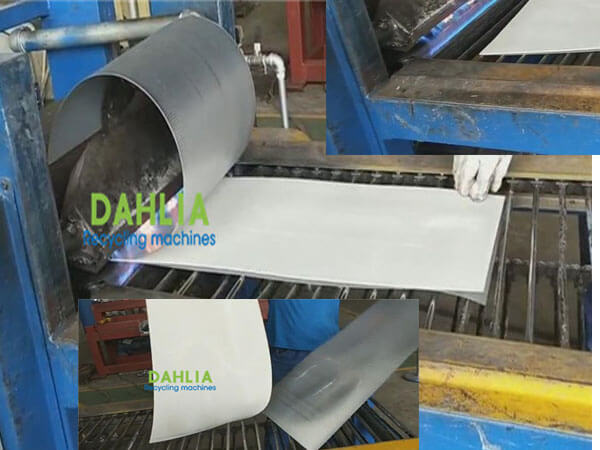

    ACM sheet peeling working
    Technical data:
    Processing panel width: < 50cm,
    Processing panel length: >1m long.
    Motor power:2.2kw ;
    gas consumption:20-30kg/8 hour
    Processing capacity: 600 kg/ hour
    Dimension:3000*1500*1300mm(L*W*H)
    Weight:750kg

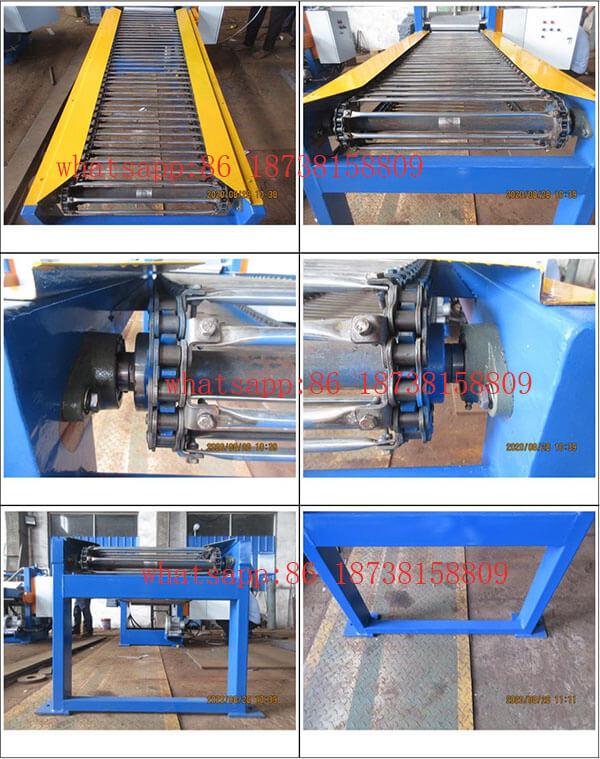

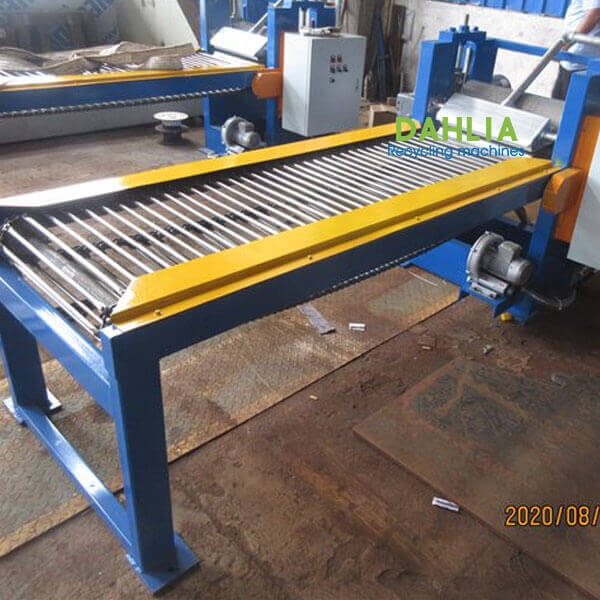

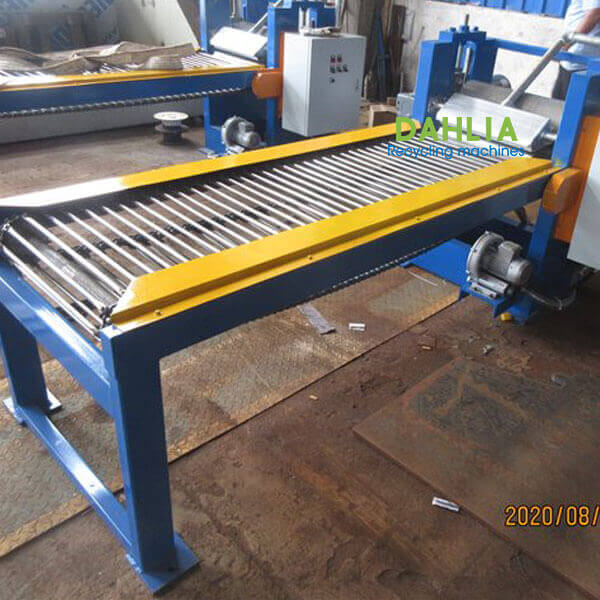

    detail pictures of alu composite panel  separator machine
    Other requirements:
    1) Electrical requirements: 380V/3phase/60HZ or  made custom; frequency converter is ABB,
    Relevant circuit diagram 1 after the equipment is completed
    And provide it to the buyer;
    2) Before the equipment is painted, the base material should be primed to make sure that the painting effect is uniform.
    Evenly; the welding part of the equipment should be polished to be fine
    3) Acceptance can only be accepted after the test machine is qualified, and the balance will be paid at the same time
    4) wood case package for long distance transportation.
    export wood package for acp separator machine
    Please submit your basic information, we will contact you as soon as possible!

    *
