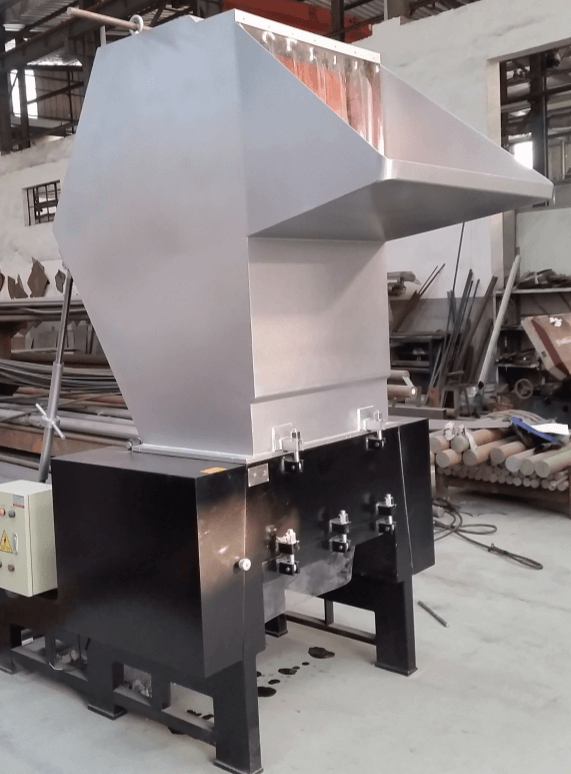

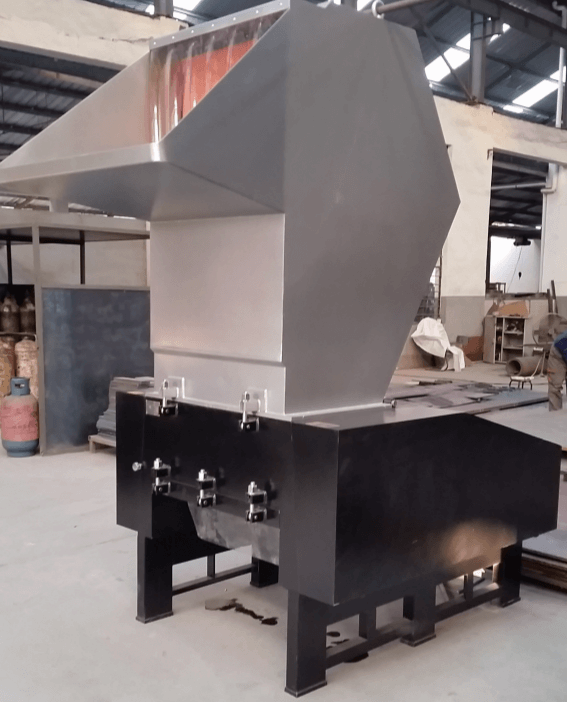

Flexible plastic waste crusher machine

Engineered to handle both rigid and flexible plastics

Introduction:

The QL Series Industrial Powerful Plastic crusher machine stands as a versatile, high-performance crushing solution designed for multi-scenario applications. Engineered to handle both rigid and flexible plastics with exceptional efficiency, it effortlessly reduces block, strip, and extruder purgings into uniform granules—delivering critical support for the rapid recycling and processing of plastic scrap, waste, and reclaimed materials while maximizing resource utilization. Its flexible installation allows seamless integration alongside main production lines for on-the-go recycling during continuous operation, or standalone use for centralized crushing of collected production line waste.

Feature:

●Cutting tools made of high chromium tool steel,gap adjustable and durable.

●The large beltwheel and flywheel increase the impact moment and capacity.

●Heavy load bearing and dust-proof design,with sound-proof plate,can prevent vibration and noise.

●Interlock safety device protect the operator and machine.

●The alternating cutting effectively reduce dust and save power.

●motor designed with overload protection,which automatically shut down when it enters protection mode.

●Equipped with castors,easy to move or place.

●Detachable design for easy maintenance."

Technical data:

Model

QL-300

QL-400

QL-500

QL-600

QL-700

QL-800

QL-1000

电机功率
Power (kw)

5.5

7.5

11

15

18.5

30

45

主轴转速
Rotating Speed (r/min)

610

580

600

500

490

440

430

主轴直径
Spindle Φ Dia (mm)

75

75

75

82

110

110

120

动刀数
Moving blades (pcs)

9

12

15

18

21

24

30

动刀数
Fixed blades (pcs)

2

2

2

4

4

4

4

旋转直径
Rotating Φ Dia (mm)

215

245

245

290

360

400

600

进料口尺寸
Feeding inlet (mm)

305x200

405x250

505x285

605x315

705x315

805x450

1005x550

粉碎能力
Crushing ability (kg/h)

150~200

250~400

300~500

500~600

600~700

700~800

≤1200

筛网直径
Screen mesh Φ (mm)

8

10

10

12

12

12

14

机器净重
Net Weight (kg)

310

442

590

805

1325

1846

2400

外形尺寸Dimensions
 (L*W*H) (m)

1.22*0.72*1.20

1.34*0.87*1.45

1.45*1.00*1.54

 1.73*1.16*1.87

1.96x1.27x2.18

2.22x1.38x2.38

2.60x1.60x3.00
