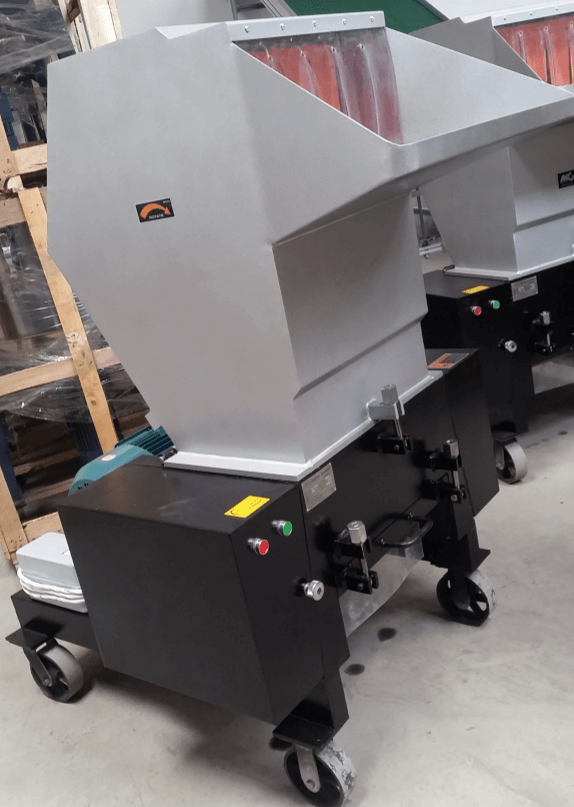

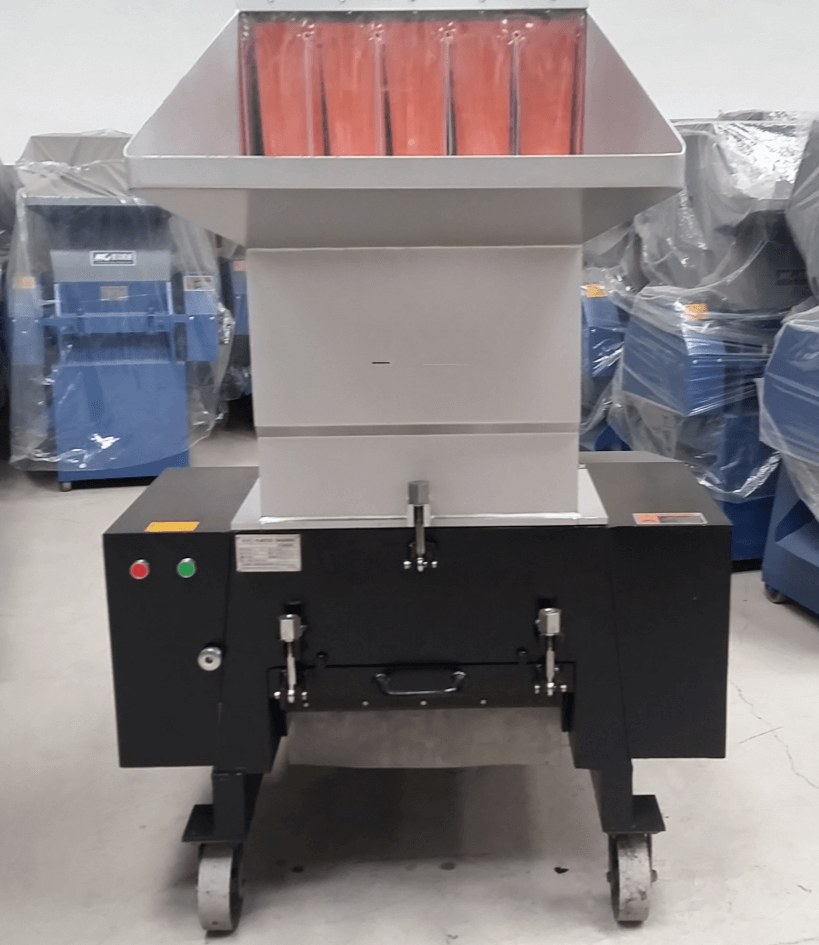

injection purgings waste crusher machine
breaks down plastic "purgings"—solidified, unusable plastic waste from injection molding and other processes—into smaller, reusable granules.
Introduction:
Injection purgings waste crusher machine is one Powerful Plastic crusher machine stands as a versatile, high-performance crushing solution designed for multi-scenario applications. Engineered to handle both rigid and flexible plastics with exceptional efficiency, it effortlessly reduces block, strip, and extruder purgings into uniform granules—delivering critical support for the rapid recycling and processing of plastic scrap, waste, and reclaimed materials while maximizing resource utilization. Its flexible installation allows seamless integration alongside main production lines for on-the-go recycling during continuous operation, or standalone use for centralized crushing of collected production line waste.
Feature:
●Cutting tools made of high chromium tool steel,gap adjustable and durable.
●The large beltwheel and flywheel increase the impact moment and capacity.
●Heavy load bearing and dust-proof design,with sound-proof plate,can prevent vibration and noise.
●Interlock safety device protect the operator and machine.
●The alternating cutting effectively reduce dust and save power.
●motor designed with overload protection,which automatically shut down when it enters protection mode.
●Equipped with castors,easy to move or place.
●Detachable design for easy maintenance."
Technical data:
Model | QL-300 | QL-400 | QL-500 | QL-600 | QL-700 | QL-800 | QL-1000 | |
Power (kw) | 5.5 | 7.5 | 11 | 15 | 18.5 | 30 | 45 | |
Rotating Speed (r/min) | 610 | 580 | 600 | 500 | 490 | 440 | 430 | |
Spindle Φ Dia (mm) | 75 | 75 | 75 | 82 | 110 | 110 | 120 | |
Moving blades (pcs) | 9 | 12 | 15 | 18 | 21 | 24 | 30 | |
Fixed blades (pcs) | 2 | 2 | 2 | 4 | 4 | 4 | 4 | |
Rotating Φ Dia (mm) | 215 | 245 | 245 | 290 | 360 | 400 | 600 | |
Feeding inlet (mm) | 305x200 | 405x250 | 505x285 | 605x315 | 705x315 | 805x450 | 1005x550 | |
Crushing ability (kg/h) | 150~200 | 250~400 | 300~500 | 500~600 | 600~700 | 700~800 | ≤1200 | |
Screen mesh Φ (mm) | 8 | 10 | 10 | 12 | 12 | 12 | 14 | |
Net Weight (kg) | 310 | 442 | 590 | 805 | 1325 | 1846 | 2400 | |
Dimensions | 1.22*0.72*1.20 | 1.34*0.87*1.45 | 1.45*1.00*1.54 | 1.73*1.16*1.87 | 1.96x1.27x2.18 | 2.22x1.38x2.38 | 2.60x1.60x3.00 | |
